Simagic QR-A: The Quick Release Adapter Revolutionizing Sim Racing Compatibility

Introduction

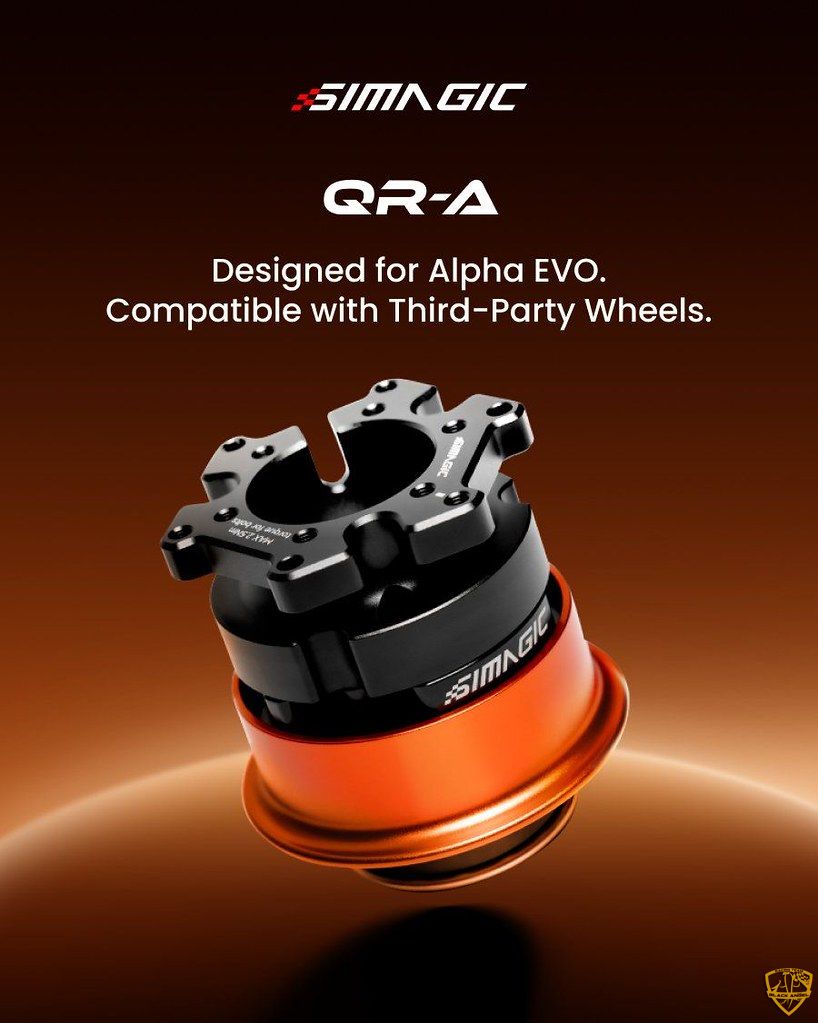

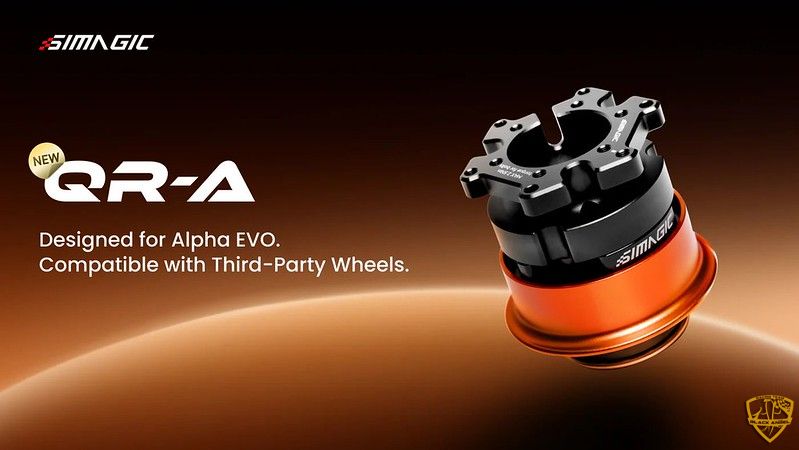

The new Simagic QR-A quick release adapter represents a significant breakthrough in the sim racing world, designed specifically to respond to Alpha EVO wheelbase users' requests for officially supported third-party wheel rim compatibility. This innovative device marks the evolution of the Simagic ecosystem, opening doors to greater flexibility and customization.

Main Technical Features

Design and Construction

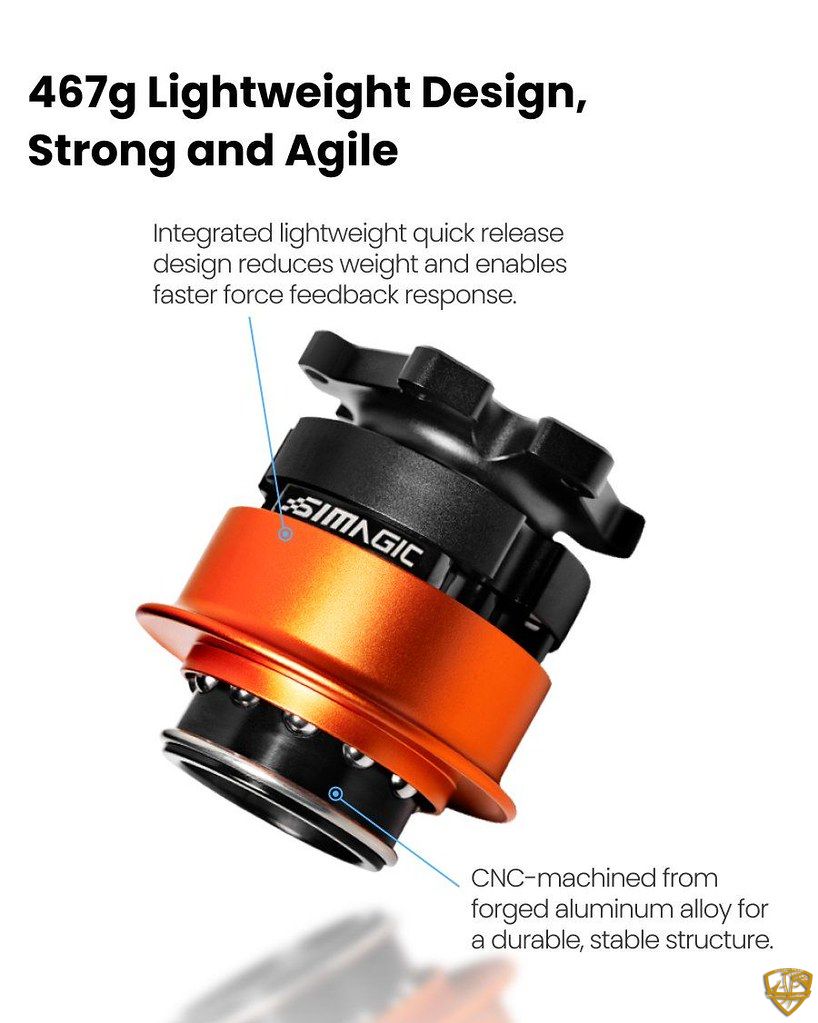

The QR-A is CNC-machined from forged aluminum alloy with anodized surface treatment, ensuring robustness and precision. Technical specifications include:

• Dimensions: 87x87x91mm
• Weight: 467g
• Material: Forged aluminum alloy with CNC precision machining
• Power Consumption: 5V⎓1.5A MAX
• Included Accessories: USB-A to USB-C data cable

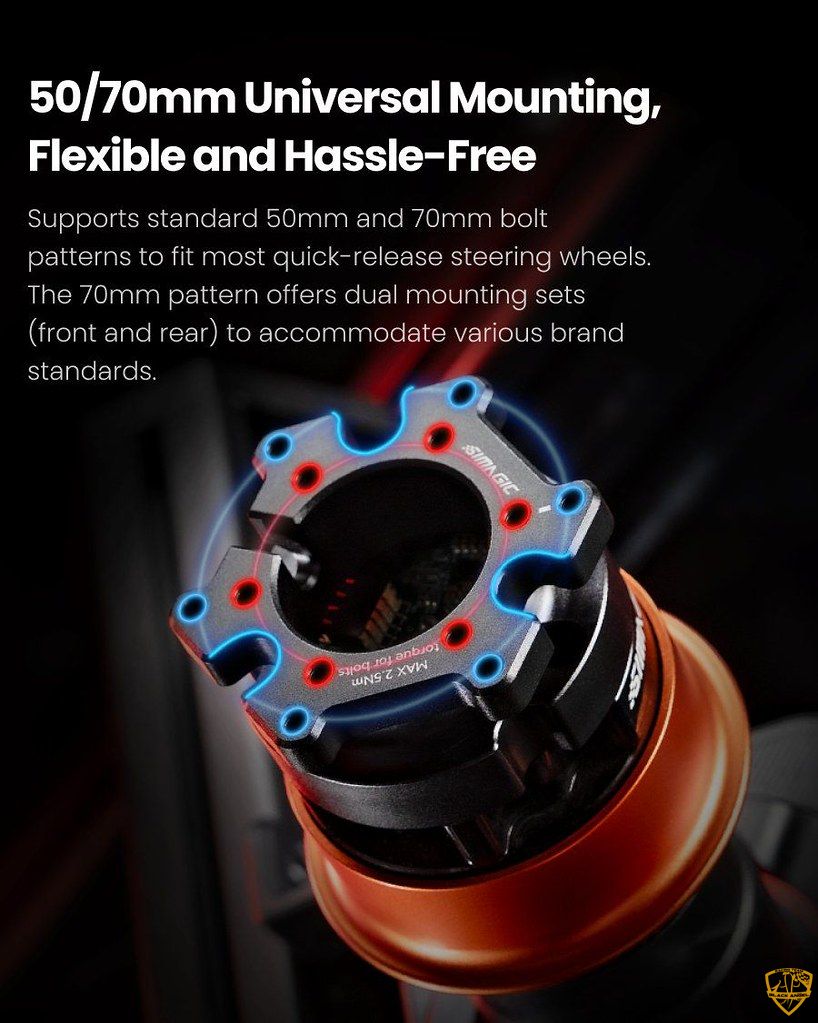

Compatibility and Mounting Patterns

The QR-A supports both 50mm and 70mm bolt patterns to fit many third-party steering wheels, with confirmed support for a range of Ascher Racing, Cube Controls, and GSI rims. This versatility makes it compatible with:

• Supported Wheelbases: Alpha EVO Sport (9Nm), Alpha EVO (12Nm), Alpha EVO Pro (18Nm)
• Mounting Patterns: 50mm and 70mm PCD
• Connectivity: USB PC connection supported

Innovative Features

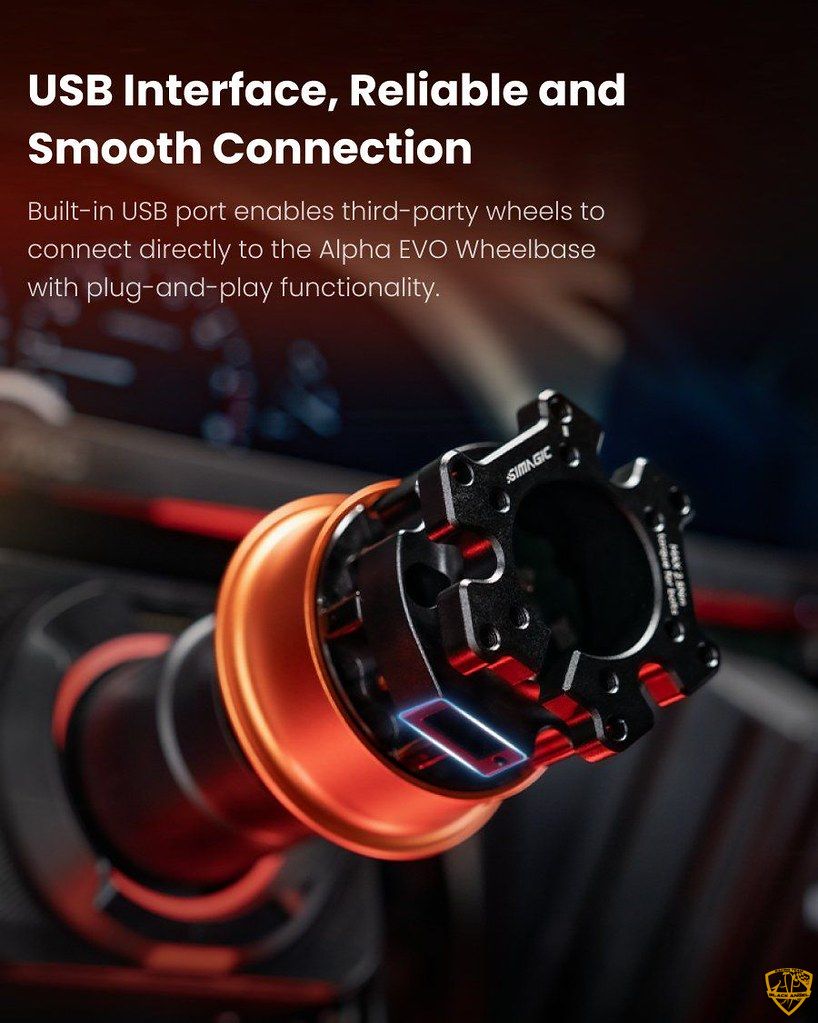

Integrated USB System

The QR-A features a built-in USB port enabling direct connection of third-party wheel rims, eliminating the need for trailing cables to the PC and reducing cable clutter and wear. The solution includes a special grooved design that aids in cable management.

Ball Lock Mechanism

The system utilizes a precise ball-lock mechanism (6 balls at the top and 4 at the bottom), ensuring a secure and reliable connection between the wheel and base, eliminating play and delivering instant response.

User Benefits

Plug-and-Play Compatibility

The beauty of the QR-A quick release lies in its plug-and-play compatibility, allowing Alpha EVO base owners to connect their wheel rims directly to their wheel base combination through USB, keeping wires out of the way and simplifying the process.

Optimized Cable Management

Simagic packages the QR-A with a USB-A to USB-C data cable, which connects the third-party steering wheel to the QR-A, with a special grooved design that aids cable management. This eliminates the problem of trailing cables that can cause wear, accidental disconnections, or clutter.

Installation and Usage

The installation process has been designed to be intuitive:

1. Wheel Connection: The wheel's USB cable connects to the QR-A
2. Mounting: The QR-A and steering wheel are then attached to the Alpha EVO as normal
3. PC Connection: The wheelbase is then connected to your PC via the 'Input 1' and 'Input 2' slots to its rear

Officially Supported Brands

The QR-A has a list of officially supported third-party wheels, jointly tested by Simagic and partner manufacturers to ensure optimal performance in terms of compatibility. Confirmed brands include:

• Ascher Racing
• Cube Controls
• GSI (Gomez Sim Industries)

Comparison with Previous QR Systems

Evolution from QR70/QR50

The new QR-A supplants Simagic's incumbent QR70/QR50 Quick Release system, offering significant improvements:

• Integrated USB connectivity
• Greater compatibility with third-party wheels
• Improved cable management
• Official support for specific brands

Enhanced Locking System

Simagic QR systems use a ball bearing type hub adapter that clicks into place when you pull back the lip, providing a very secure fitting that mates perfectly with the wheelbase side QR system.

Impact on the Sim Racing Ecosystem

Opening the Simagic System

The introduction of the QR-A represents a significant change in Simagic's strategy, which traditionally had a more closed ecosystem. With this new QR-A quick-release, Simagic has opened the door to convenient third-party wheel options to use alongside your other Simagic products.

Community Benefits

This opening brings numerous advantages:

• Greater choice for users
• Ability to use specialized wheels for different disciplines
• Cost reduction for those who already own compatible wheels
• Increased longevity of wheelbase investment

Technical Considerations

Power and Data Management

The QR-A system manages both power and data transfer through the USB connection, supporting wheels with integrated displays and extensive LED lighting that typically require a direct wired connection for power.

Limitations and Considerations

It's important to note that the QR-A is specifically designed for Alpha EVO wheelbases and is not backwards compatible with previous Simagic models. Users must also verify specific compatibility of their third-party wheel before purchase.

Future Prospects

Future Developments

Simagic has indicated that the optional QR Adapter will offer data transfer and power supply, compatible for SimHub users and third-party wheel bases, with no cables needed, suggesting further developments in connectivity technology.

Market Impact

The introduction of the QR-A could influence other manufacturers to follow a more open approach to compatibility, benefiting the entire sim racing community through greater interoperability between different brands and systems.

Conclusions

The Simagic QR-A Quick Release Adapter represents an important strategic move that balances the integrity of the Simagic ecosystem with the flexibility demanded by modern sim racing users. With a rock-solid, forged aluminum alloy design and a built-in USB port, the QR-A is the next step in expanding the Alpha EVO ecosystem.

This innovation not only improves the user experience through simplified cable management and greater compatibility, but also establishes a new standard for third-party hardware integration in sim racing. For enthusiasts seeking maximum flexibility without compromising quality and performance, the QR-A presents itself as an ideal solution that combines the best of both worlds.
