Thermaltake G6 Direct Drive Racing Wheel: A PC Hardware Giant Enters Sim Racing

Introduction

The sim racing market continues to evolve and attract new players, although the initial hype has somewhat diminished in recent years. Thermaltake, one of Taiwan's leading manufacturers of PC cases, power supplies, cooling systems, and much more, has decided to enter this competitive sector with an interesting and comprehensive offering.

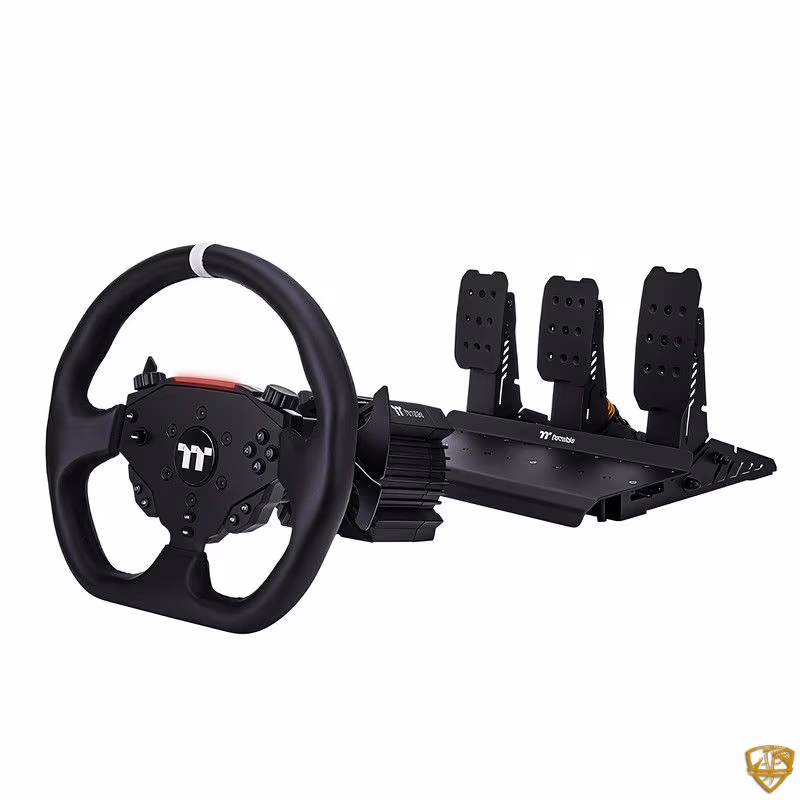

First introduced in January 2025, the Thermaltake G6 Direct Drive Racing Wheel with Pedals Bundle represents the company's debut in the sim racing world, offering a complete package that includes a 6Nm direct drive wheelbase, steel pedal set, and a 13-inch D-shaped steering wheel.

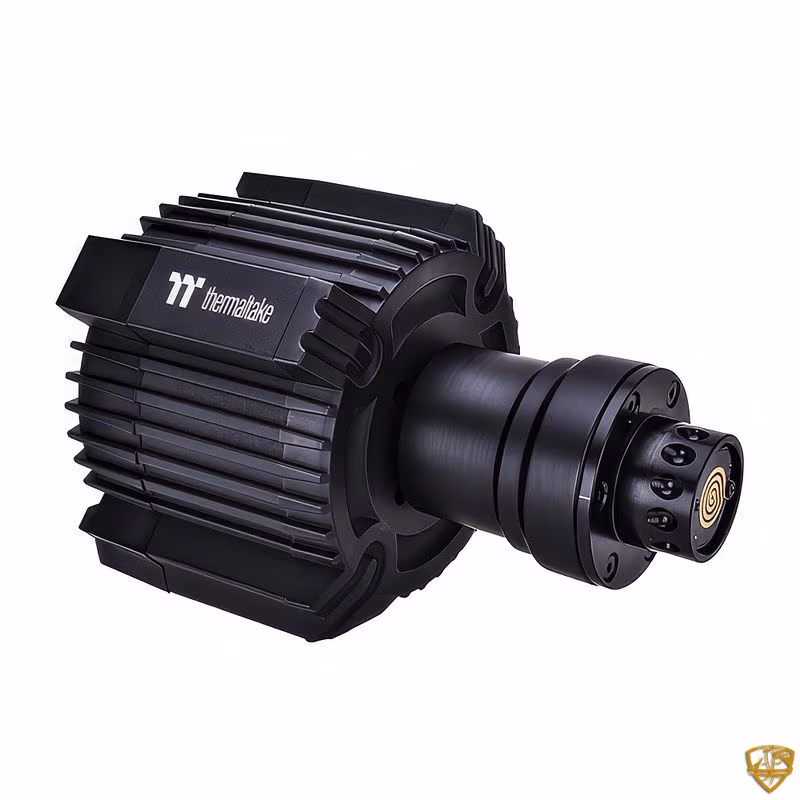

The G6 Direct Drive Wheelbase: Power and Precision

Wheelbase Technical Specifications

The heart of the system is the G6 direct drive wheelbase, designed to deliver professional performance in a compact format:

• Force Feedback System: Direct Drive
• Peak Torque: 6Nm
• Max Steering Angle: Infinite Rotation
• Housing Material: Aluminum Alloy
• Input Voltage: 110V~220V AC → 24V DC
• Encoder Resolution: 16-bit
• Quick Release: Interchangeable system

Advanced Technical Features

The compact wheelbase houses a servo motor enclosed in an aluminum alloy housing, ensuring robustness and optimal thermal dissipation. The system features a dual motor cooling system, low-noise fan, and integrated temperature sensor to maintain consistent performance even during extended usage sessions.

Control is handled by a 16-bit encoder that guarantees millimeter precision in detecting steering wheel position. The wheelbase provides multiple connection ports for shifter, pedals, emergency stop button, controller, and power, offering maximum flexibility for system expansion.

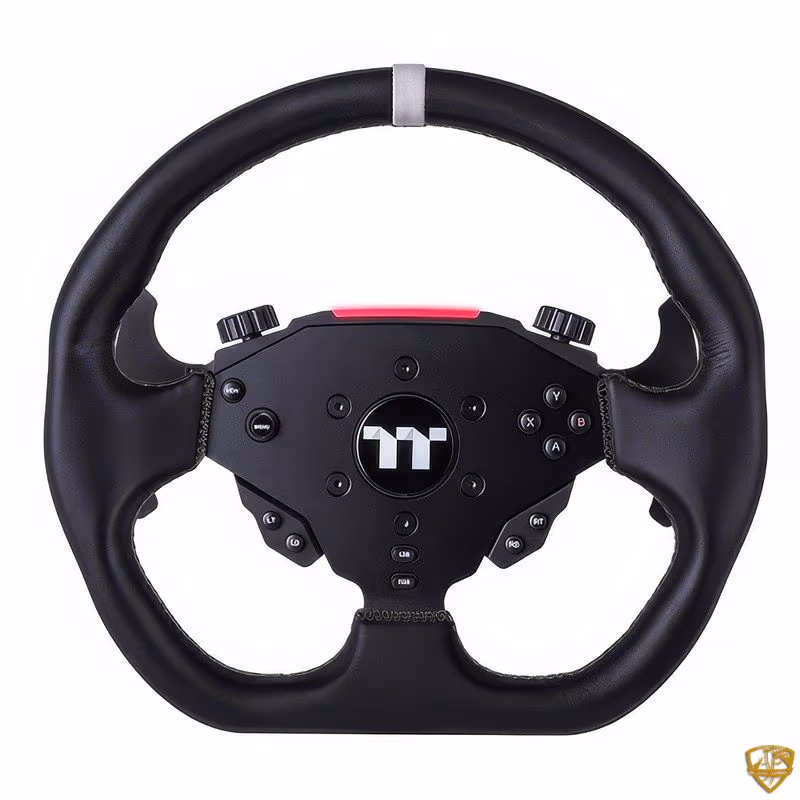

The G6 Steering Wheel: Design and Functionality

Steering Wheel Specifications

• Wheel Material: Premium Microfiber Leather
• Frame and Front Plate Material: ABS+AL
• Dial Material: ABS+Leather
• Size: 13 inches
• Shape: D-shaped

Controls and Interface

The G6 steering wheel offers a complete control interface:

• 2 shifter paddles for gear changes
• 2 clutch paddles for advanced controls
• 2 rotary encoders for on-the-fly adjustments
• 12 programmable buttons customizable
• 1 five-way joystick for menu navigation
• 10 configurable RGB LEDs for visual feedback

The steering wheel is wrapped in premium synthetic leather and connects to the wheelbase via a quick-release system with steel balls, enabling quick and secure changes.

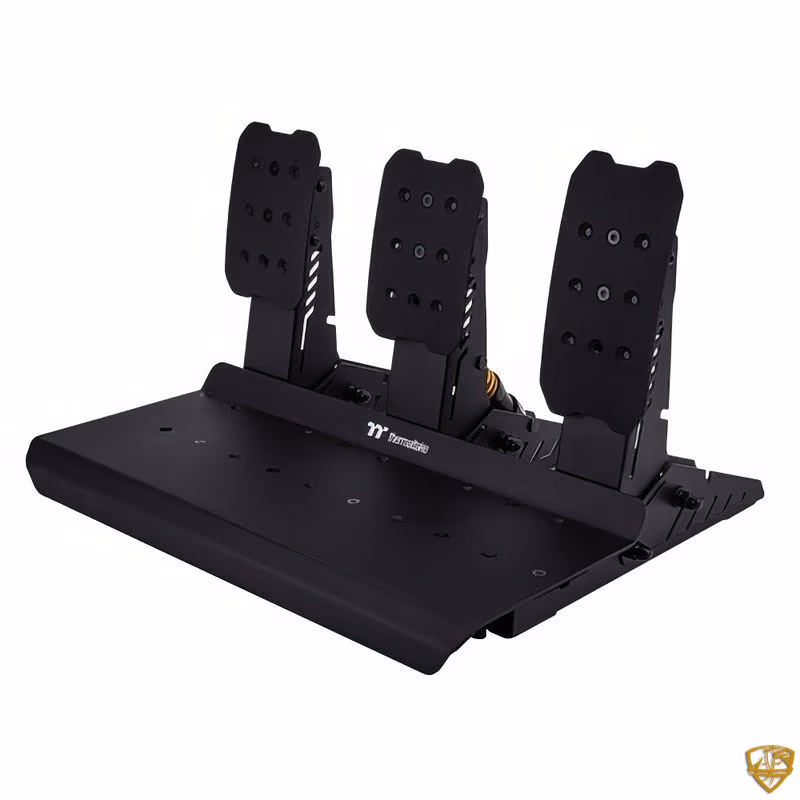

G6 Pedal Set: Precision and Robustness

Construction and Materials

The G6 pedals are constructed entirely from high-strength steel, ensuring durability and stability even during the most intense sessions. The pedal plates are also made of high-strength steel and equipped with anti-slip pads for maximum grip.

Pedal Technical Specifications

• Material: High-strength Steel
• Sensor Type: Hall Effect Sensors
• Pedal Spacing: 130mm
• Pedal Plate Height: 223.2mm
• Anti-Slip Pads: Yes
• Pre-drilled Base: For easy mounting

Adjustments and Customization

The pedal set offers complete adjustments to adapt to any setup and driver preference:

• Adjustable spacing between pedals
• Adjustable angle for each pedal
• Adjustable height for optimal ergonomics
• Compatibility with optional brake dampening kit

The Hall Effect sensors guarantee superior precision and longevity compared to traditional potentiometers, eliminating mechanical wear and offering contactless position detection.

Thermaltake Racing Control Software

The system is managed by the proprietary Thermaltake Racing Control software, which offers complete control over all aspects of the driving experience:

Main Features

• Force feedback adjustment: Customizable intensity and characteristics
• Pedal response: Configurable response curves
• Steering sensitivity: Adaptable to different driving styles
• Button mapping: Complete control customization
• Multiple profiles: Save configurations for different games and vehicles

Thermaltake Sim Racing Ecosystem

Thermaltake doesn't limit itself to just the wheel and pedals, but aims to create a complete sim racing ecosystem:

• Thermaltake GR500: Dedicated cockpit
• GM5: Motion system for greater immersion
• Thermaltake monitor stands: For multi-screen configurations

Price and Availability Considerations

At the time of writing this article, prices are not uniform among different suppliers and vary considerably from source to source. It's recommended to check with local retailers or online stores for updated pricing information.

Conclusions

The Thermaltake G6 Direct Drive Racing Wheel represents an interesting entry into the sim racing market by a company with solid credentials in PC hardware. The combination of quality materials, direct drive technology, and comprehensive control software makes this system a competitive proposition for intermediate and advanced sim racers.

Thermaltake's ecosystem approach, with the complete range of complementary products, demonstrates the company's commitment to the sector and could represent a valid alternative to already established brands in sim racing.

https://www.thermaltake.com/g6-direct-drive-racing-wheel-with-pedals-bundle.html
